Item |
|
Description |
|
|
|
|
|
|
|
Valve
Size |
|
| 8A(1/4") |
|
10A(3/8") |
|
15A(1/2") |
|
20A(3/4") |
|
25A(1") |
|
32A(1-1/4") |
|
40A(1-1/2") |
|
50A(2") |
|
|
|
|
|
|
|
|
Actuator
Model |
|
SM3 |
|
|
|
|
|
|
|
Actuator
Type |
|
ELECTRIC |
|
|
|
|
|
|
|
Power |
|
AC
110V, 220V, 380V |
|
|
|
|
|
|
|
Output
Torquel |
|
60Nm |
|
|
|
|
|
|
|
Operating
Type |
|
20/50Hz |
|
|
|
|
|
|
|
Operating
Type |
|
ON/OFF,
Modulating |
|
|
|
|
|
|
|
Rotating
Angel |
|
90
±3 |
|
|
|
|
|
|
|
Fluid
Temp |
|
-10
~ 90℃ |
|
|
|
|
|
|
|
Pressure
Range |
|
10kgf/cm² |
|
|
|
|
|
|
|
Body
Material |
|
| SUS316/BODY |
|
SUS316/BALL |
|
PTFE/SEAT |
|
|
|
|
|
|
|
|
|
|

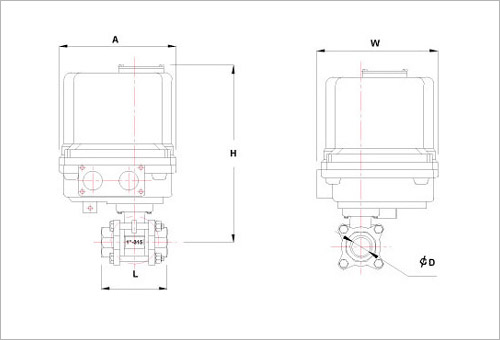

 DIMENSION
|
UNIT : mm |
|
|
|
|
|
MODEL |
SIZE |
A |
W |
H |
L |
￠D
|
SM3-8S |
8A |
1/4" |
113.5 |
121.8 |
205 |
60 |
8 |
SM3-10S |
10A |
3/8" |
113.5 |
121.8 |
205 |
60 |
10 |
SM3-15S |
15A |
1/2" |
113.5 |
121.8 |
205 |
65 |
15 |
SM3-20S |
20A |
3/4" |
113.5 |
121.8 |
207 |
75 |
20 |
SM3-25S |
25A |
1" |
113.5 |
121.8 |
216 |
85 |
25 |
SM3-32S |
32A |
1-1/4" |
113.5 |
121.8 |
227 |
100 |
32 |
SM3-40S |
40A |
1-1/2" |
113.5 |
121.8 |
231 |
110 |
40 |
SM3-50S |
50A |
2" |
113.5 |
121.8 |
239 |
130 |
50 |
|
|
|
 |
|
|
| |
 |
|
|
|
|
|
