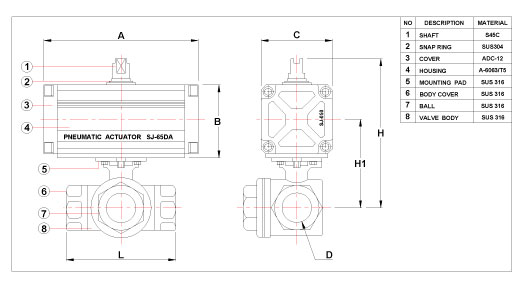

DIRECTION OF FLOW
DIMENSION
UNIT : mm
VLAVE SIZE
ACTUATOR
D
A
B
C
L
H1
H
inch
mm
3/8"
10A
SJ-50DA
12.7
122
67
68
80
62.5
100.5
1/2"
15A
SJ-50DA
12.7
122
67
68
80
72.5
124.5
3/4"
20A
SJ-50DA
15
122
67
68
87.5
78
130
1"
25A
SJ-50DA
20
122
67
68
100
86.5
138.5
1-1/4"
32A
SJ-65DA
25
166
86
80
123
102.5
163.5
1-1/2"
40A
SJ-65DA
32
166
86
80
142.2
107.5
168.5
2"
50A
SJ-80DA
40
230
104
100
170.6
129.5
202
DIRECTION
OF FLOW
DIMENSION
