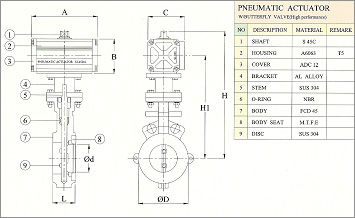

DIMENSION UNIT : mm

VALVE SIZE

ACTUATOR

A

B

L

C

H1 H φd φd
2" 50A SJ-50DA 122 67 50 68 230 282 40 97
2-1/2' 65A SJ-65DA 166 86 54 80 245 306 55 115
3" 80A SJ-65DA 166 86 56 80 258 319 70 125
4" 100A SJ-80DA 230 108 64 100 286 358.5 94 150
5" 125A SJ-80DA 230 108 64 100 294 366.5 119 174
6" 150A SJ-100DA 290 129 64 120 334 416 144 210
8" 200A SJ-100DA 290 129 68 120 364 446 195 264


Specifications

  Product range - 40mm up to 1000mm
  Pressure Temperature range
    Metal seat type WMP 4.90Mpa(50kgf/cm²) WMP450deg. Cels.
    Teflon seat typeWMP 1.96Mpa(20kgf/cm²) WMP 450deg. Cels.
  Flange connection

iso pn6. 10, 16, 20 and 25 MSS SP 44 CL. 150. 300
ANSI B16-1 CL ANSI B16-5 CL. 150. 300
BS4504 PN6, PN10, PN16 BS 10 Table D and E
AS2129 Table D and E Jis B2210 5k, 10K, 16K and 20K
  Face to Face dimensions - in accirdance with ISO 5752, BS 5155, MSS SP67 and AP 1609
  Actuator connection --- valve can be fitted with any 1/4 turn actuator equipped
    with a mounting plate meeting the standard ISO5211
