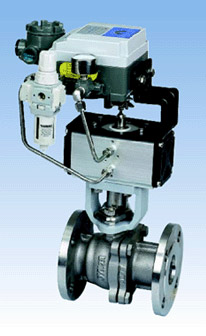

IP-POSITIONER SPECFICATIONS
single Acting Double Acting
Input signal 4~20mA DC
Impedance 250±15OOhm
Supply Pressure 1.4~7kgf/cm²(20~100psi)
stroke 0~90˚
Air Connection PT(NPT)1/4
Gauge Connection PT(NPT)1/8
Conduit PT1/2(G1/2)
Explosion Proof Exdmllb(C)T6,ExiallBT6
protection IP66
Ambient Temp -20℃~70℃
Linearity ± 1%F.S ± 2%F.S
Hysteresis 1%F.S
Sensitivity ± 0.2%F.S ± 0.5%F.S
Repeatability ± 0.5%F.S
Air Consumption 3LPM(Sup.=1.4kgf/cm²,20psi)
Flow capacity 80LPM(Sup.=1.4kgf/cm²,20psi)
Material Aluminum Diecasting
Weight 2.8kg(6.2lb)

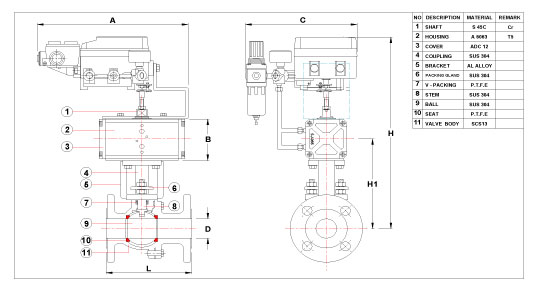

DIMENSION UNIT : mm

VLAVE SIZE ACTUATOR D A L C B H1 H
inch mm
1/2" 15A SJ-65DA 15 292 108 216 86 162 374
3/4" 20A SJ-65DA 20 292 117 216 86 166 378
1" 25A SJ-65DA 25 292 127 216 86 171 383
1-1/4" 32A SJ-65DA 32 292 140 216 86 184 396
1-1/2" 40A SJ-65DA 40 292 165 216 86 186.5 399
2" 50A SJ-65DA 50 292 178 216 86 195 407
2-1/2" 65A SJ-80DA 65 292 190 216 108 218 441
3" 80A SJ-80DA 80 292 203 216 108 240 463
4" 100A SJ-100DA 100 292 229 216 129 263 496
